A selection of recent PALUM tooling projects shipped to automotive, medical, electronics and appliance customers in 70+ countries — with redacted process data and real production outcomes. Every cavity is trial-validated before shipment.
Recent Molds From PALUM
Two-shot, overmold and multi-cavity molds for tier-1 buyers worldwide. Click any case for the full project breakdown.

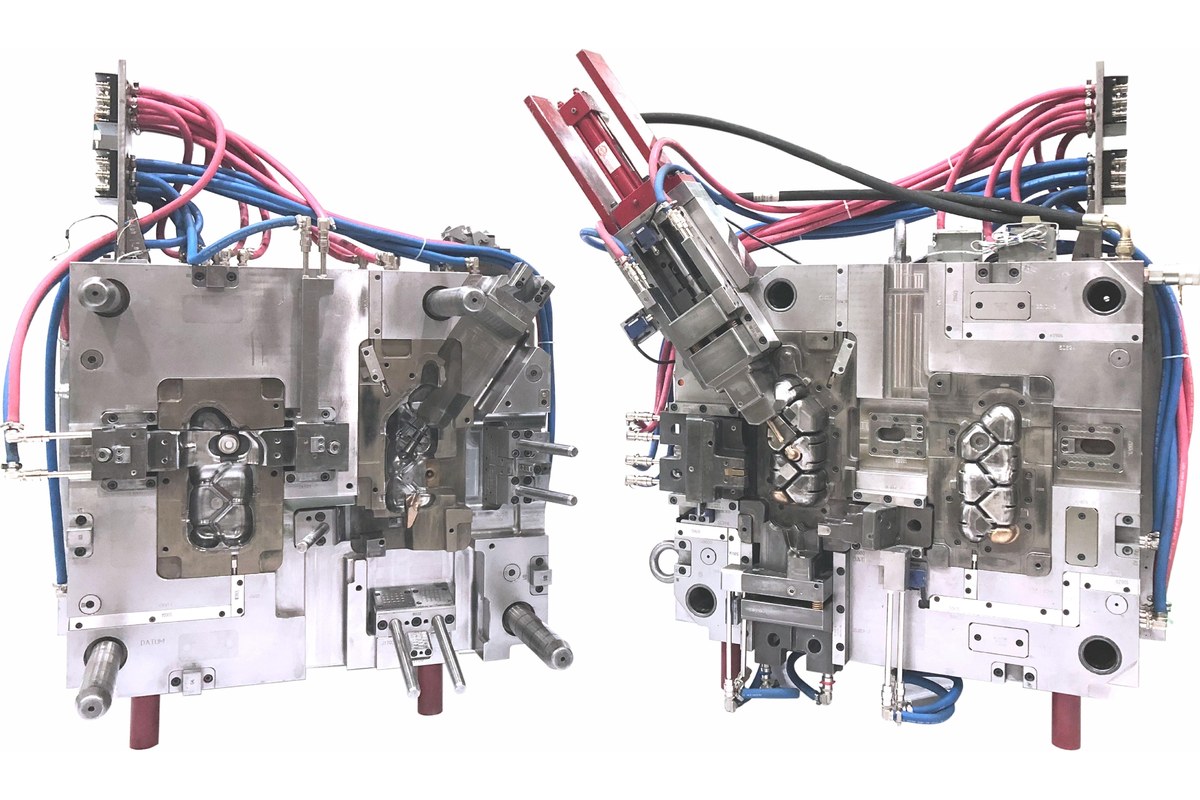

Twin-cavity injection mold with hot-runner manifold and hydraulic cores for a vehicle coolant reservoir — uniform wall thickness with in-mold water circuits.

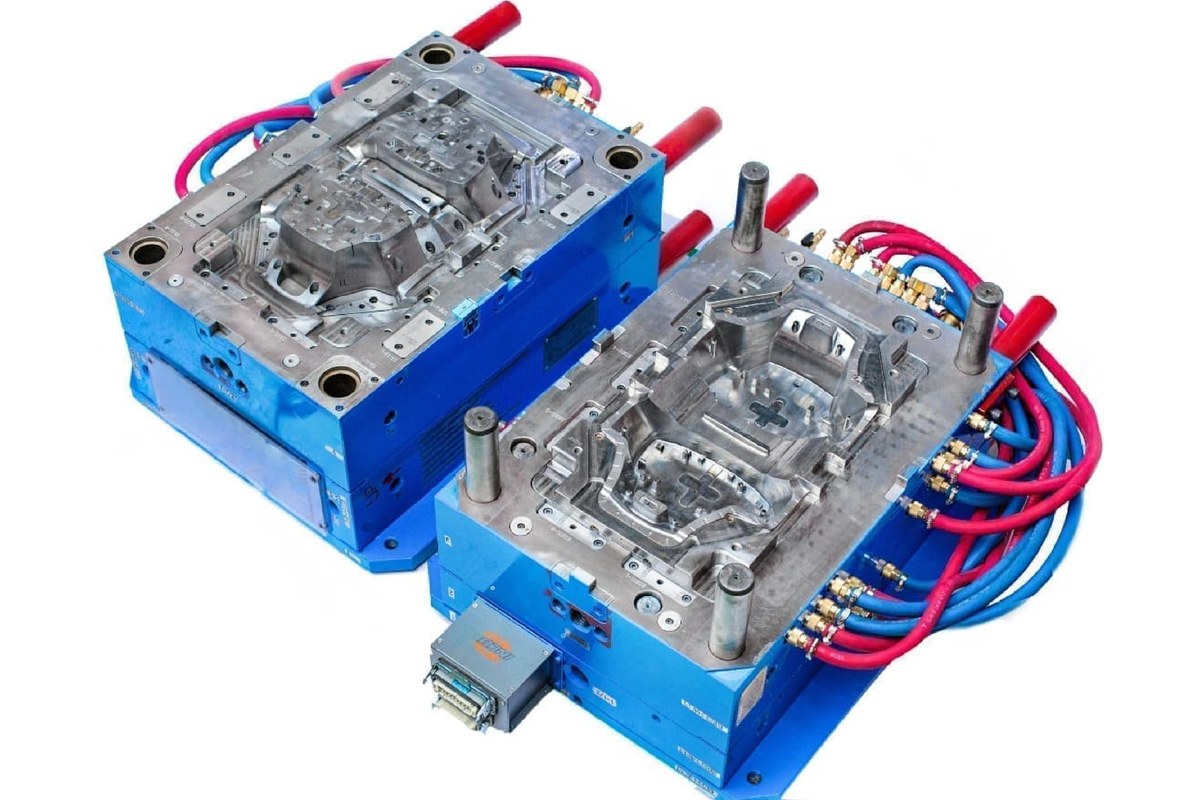

Structural member mold with sequential valve gating — weld lines moved off all cosmetic faces; runs on presses up to 320 T.

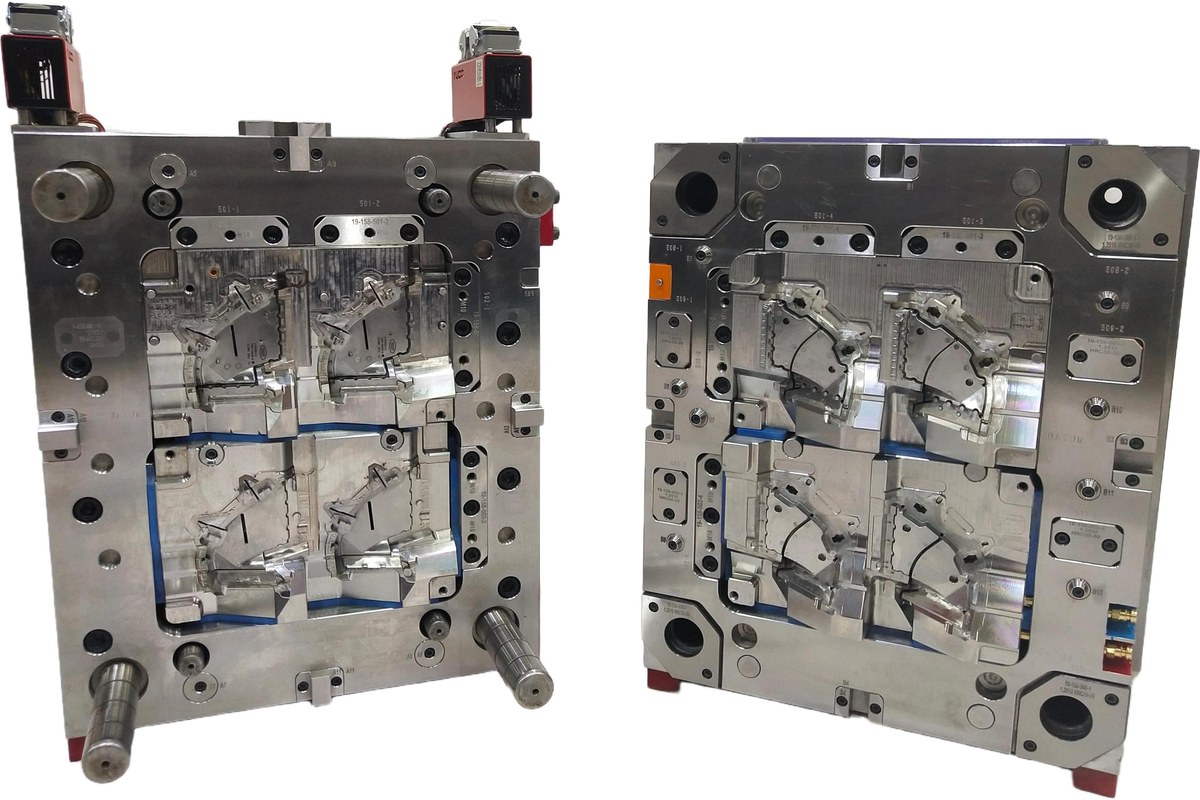

Over-molding tool for interior trim — a second material is molded over the substrate in one tool, with eight angled lifters releasing every undercut in a single stroke.

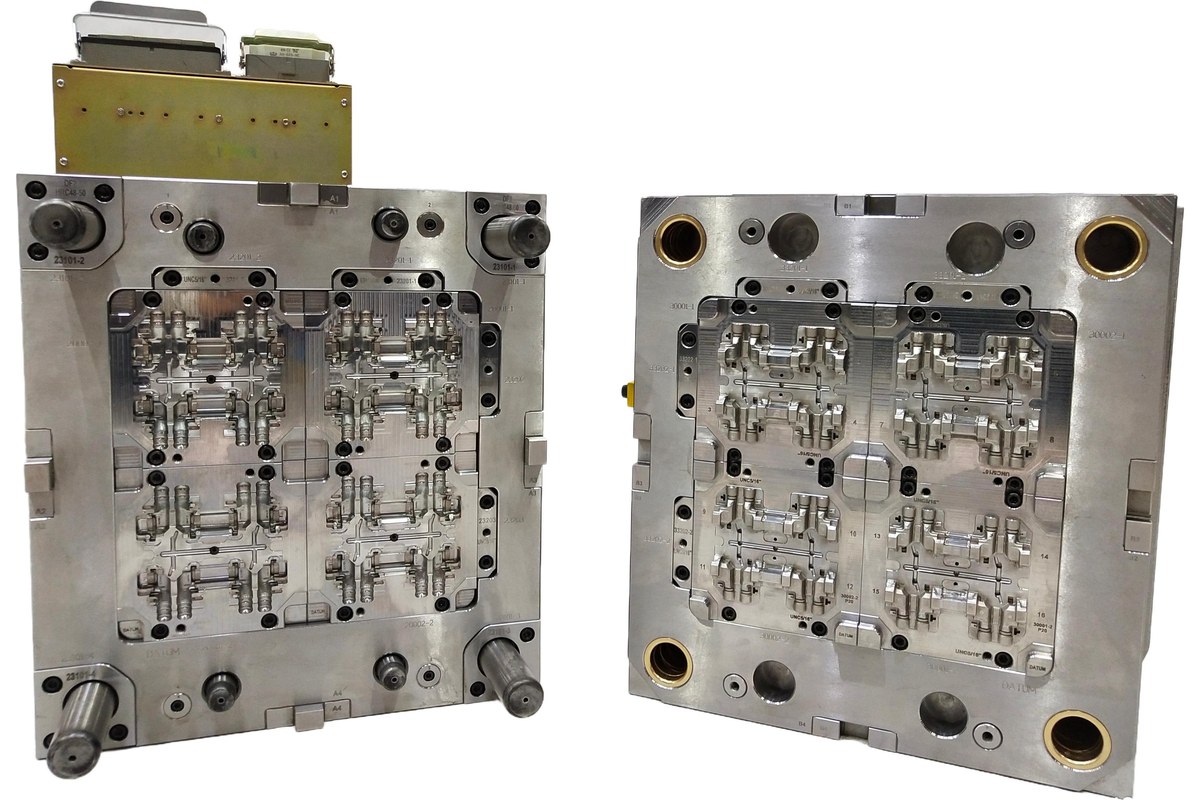

Valve-gated hot runner on eight cavities — zero gate vestige on any visible face.

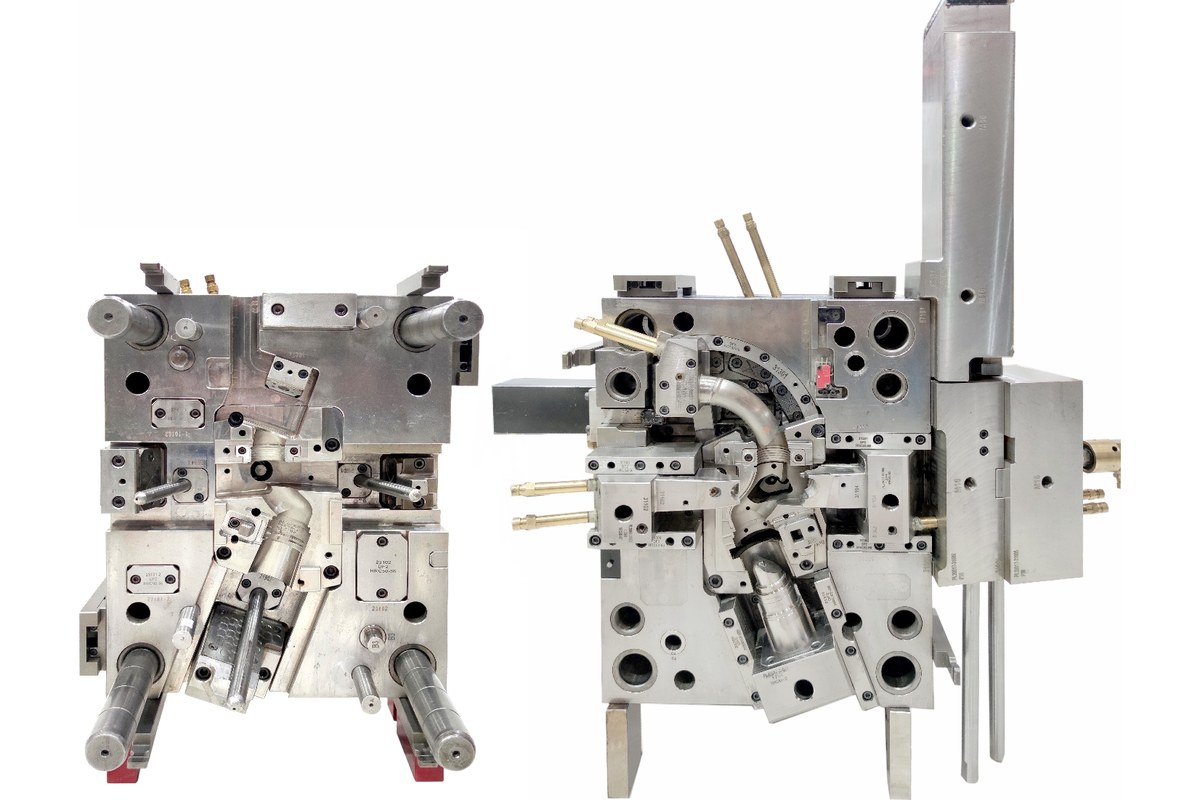

Long-stroke sliders form the 45° channel in one shot — no secondary machining.

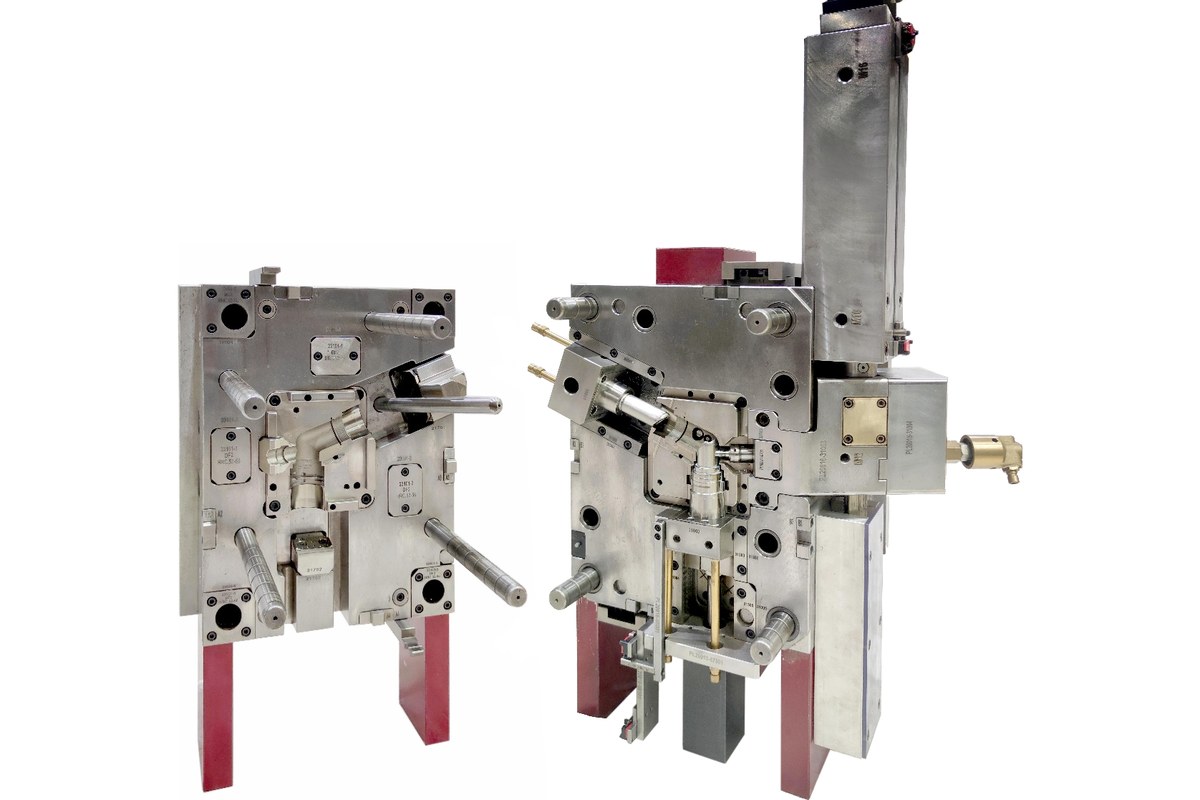

Brass inserts loaded in-mold; a two-stage core pull forms the elbow and locking fingers.

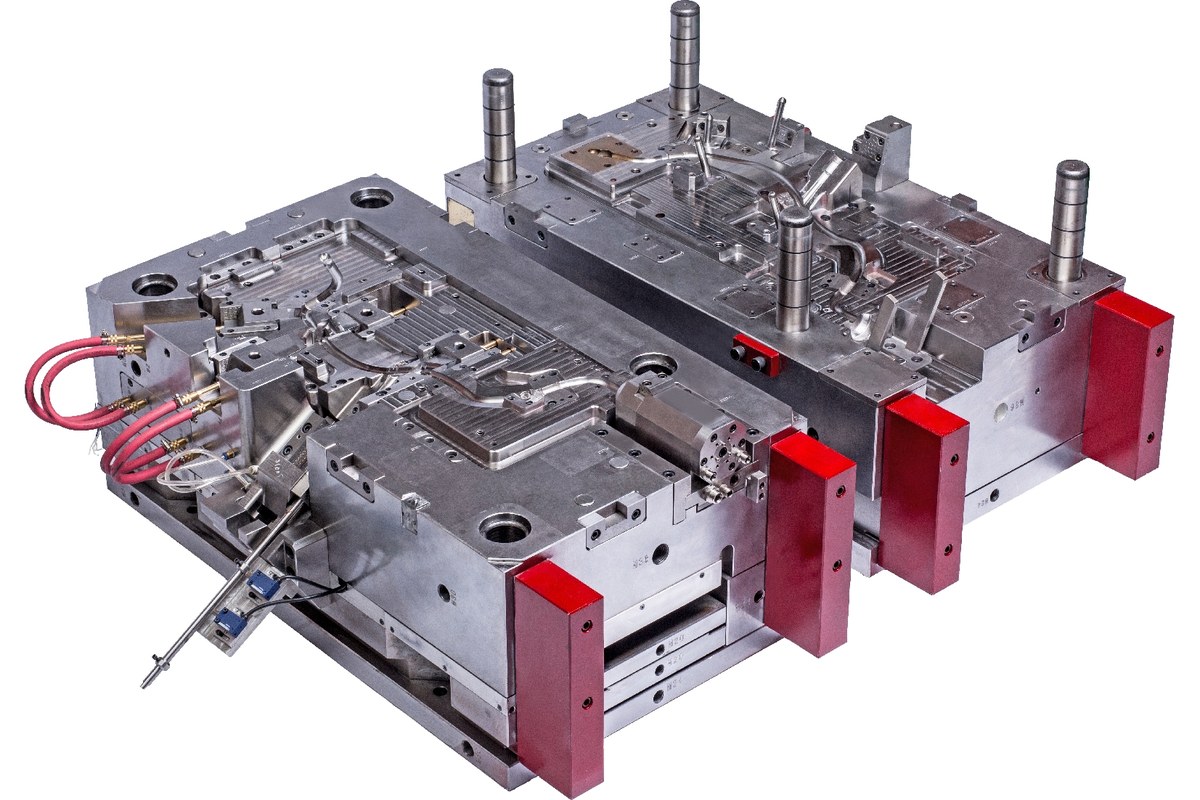

Gas-assist injection molding with hydraulic core pull — the high-pressure nitrogen hollows out the PA6-GF30 manifold, leaving a smooth inner passage.

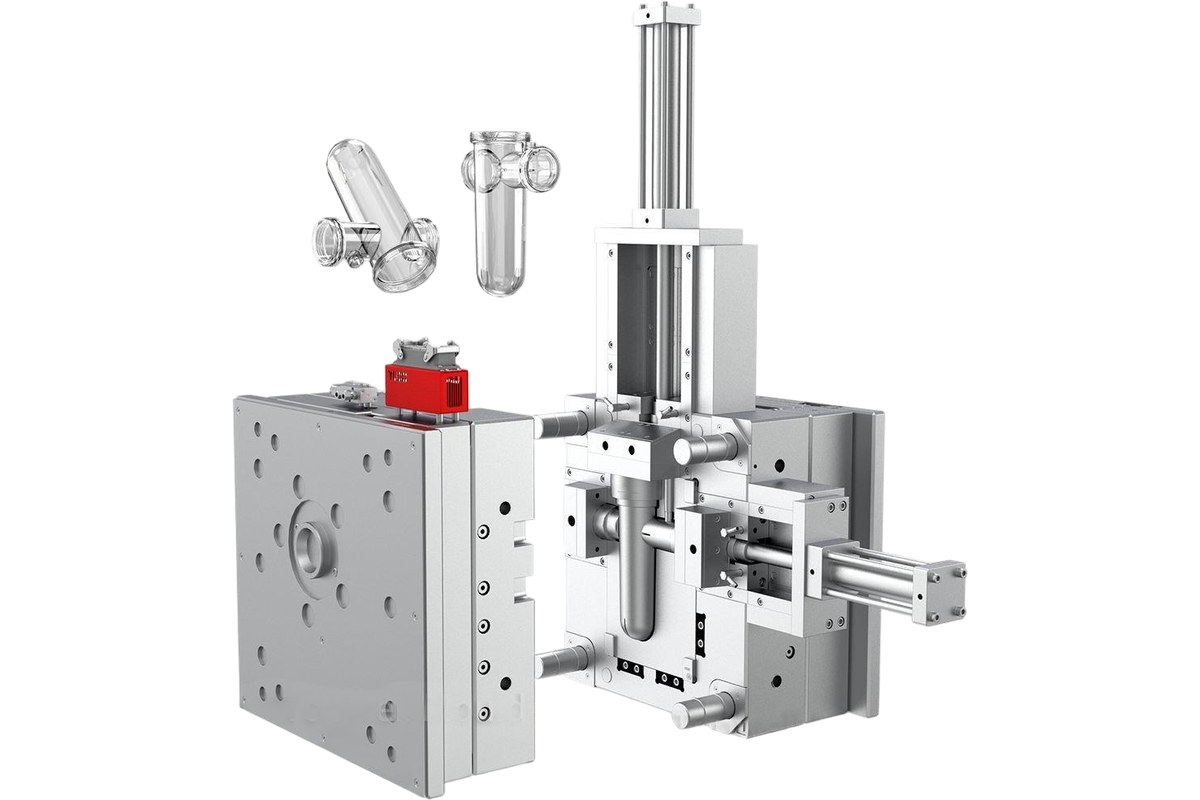

Medical-grade transparent manifold tool, cavities polished to SPI A1 for scratch-free clarity.

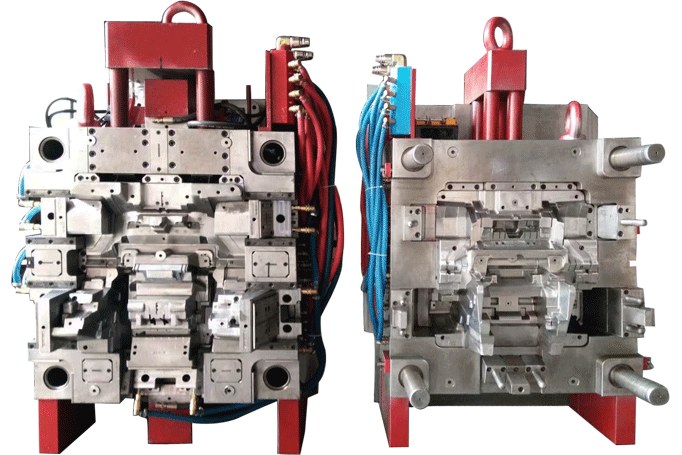

One large automotive-parts mold shown from both sides — hydraulic cores and water-assist channels plumbed and proven in-house.

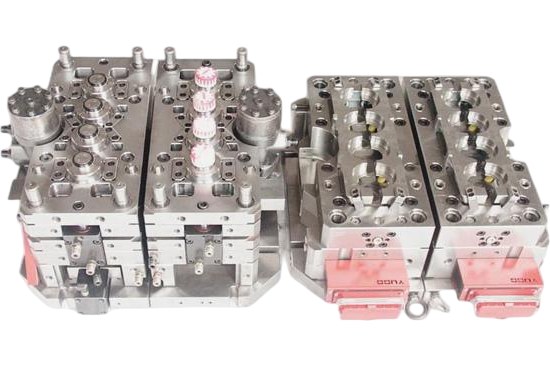

Two-color (2K) connector mold — four cavities mold hard PA66 housing and soft seal in one shot, no assembly needed.

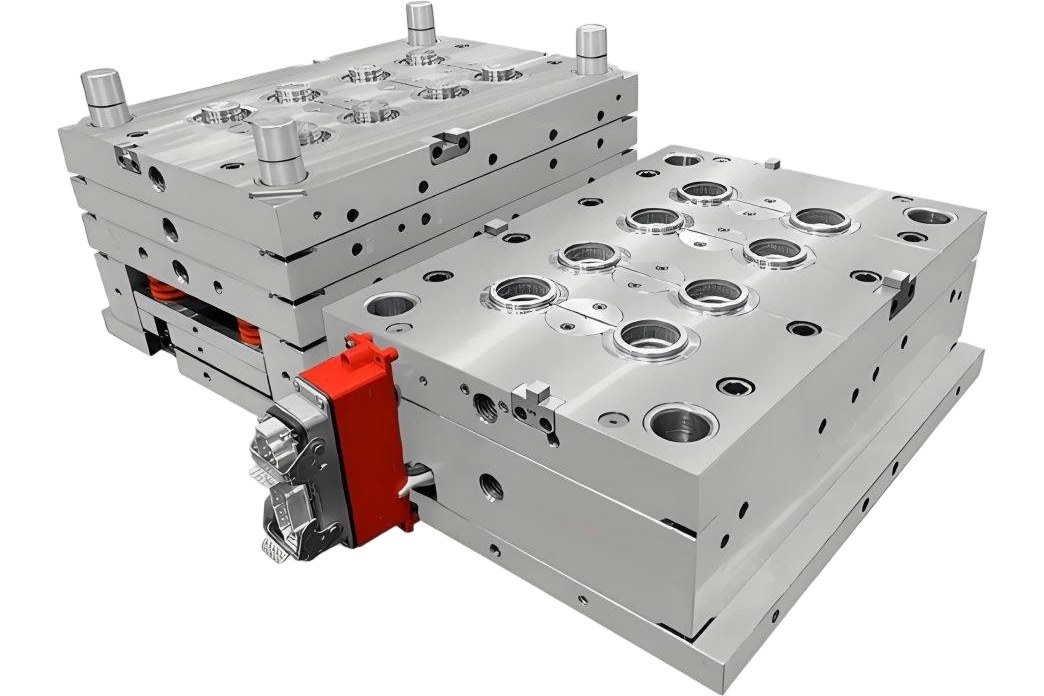

Balanced hot runners and an 8-second cycle on sixteen preform cavities.

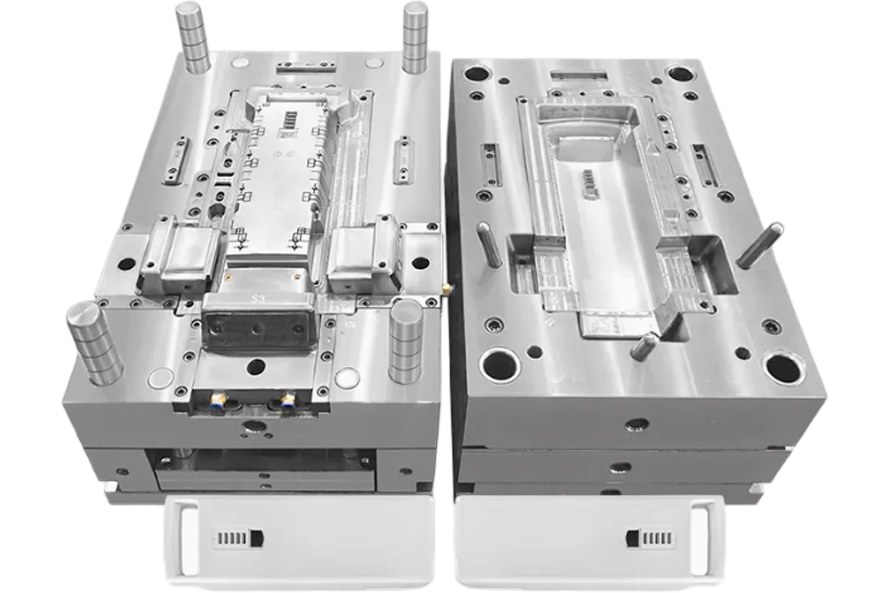

Two-plate shell tool for power-product accessories — high-gloss cosmetic faces plus grain texture built into one mold.
Locked process windows, real-time SPC and a direct line to the factory floor.
// FAQ
Yes. We keep a confidential case library across automotive, medical, electronics and appliances. Contact us with your application and we will share redacted references.
Yes. We sign a mutual NDA before any detailed case, drawing or cavity data is shared.
Send your drawing or sample — request the redacted case library and DFM feedback within 24 hours.
Use the form below to share your requirements and upload available drawings or reference files.
Your project information will be used to review your inquiry and prepare the appropriate manufacturing response.
